5 Inch Touch Screen Mobile Pos NFC Magnetic Card Swipe Payment Terminal

  • 1 - 49 Pieces
    $178.00
  • >=50 Pieces
    $166.00
Model Number:
GT90
Screen Size:
5 Inch
Customization:
Customized logo (Min. Order: 100 Pieces)
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Goodcom
After-sales Service Provided:
Online support
Warranty:
1 YEAR
Operation System:
android 5.1 &7.1
CPU:
qualcomm
Touch Screen Type:
Capacitive Screen
Product Name:
NFC Magnetic Card Swipe Payment Machine Mobile Pos Terminal
Connection Mode:
WIFI, 4G, 3G, GPRS, SMS
Bluetooth:
BT 4.0
Screen:
5.0 inch Touch Screen
OS:
Android 5.1, android 7.1
Card Swipe Function:
NFC, RFID, Magnetic Card, Smart Card
RAM:
8Gb SDRAM
Flash:
64Gb NAND Flash
Battery:
5200mAh
Dimensions:
183mm*84mm*68mm
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
gift packing: one piece/box; 10 boxes/carton
Port
Xiamen Port
Video Description
Product Description

5 Inch Touch Screen Mobile Pos NFC Magnetic Card Swipe Payment Terminal

The 5 Inch Touch Screen Mobile POS Machine is our latest design for multipe applications: food takeaway/delivery service, hotel, taxi, lottery, bus tickets, bill payment, mobile airtime top-up/ recharge, mobile payment (deposit & withdraw), online shopping, etc.

Comes with built-in NFC & RFID reader, smart card and magnetic card swipe function, it could be perfectly applied for any mobile payment solutions.

Key Features:

- connect through WIFI,4G,3G,GPRS, SMS, bluetooth
- 5 inch touch screen
- android 5.1/7.1 OS, 8Gb RAM, 64Gb flash
- battery lasts 8~10 days when standby
- NFC and RFID card reader (optional)

- Smart card, Magnetic Card Swipe (optional)
- Free SDK
Specifications














Hardware/software

/Mechanical
Items
Technology Standard
CPU
Qualcomm Quad-Core Cortex™-A7 1.1GHz
GPU
Qualcomm Adreno™ 304
RAM
8Gb SDRAM
FLASH
64Gb NAND FLASH
OS
Android 5.1, Android 7.1
Display
5 inches color screen (720*1280)
Touch screen
Multipoint capacitive touch screen
Keyboard
Power key,Volume key
WIFI
802.11b/g/n
GPS
GNSS gpsOne Gen 8B standalone
assisted,XTRA
Camera (optional)
5 Mega-pixel
Wireless
2G: GSM/GPRS/EDGE
3G: WCDMA,TD-SCDMA,CDMA2000
4G: LTE: FDD/TDD
Battery
5200mAh
USB
USB 2.0
External memory card
TF card
Magnetic Card (optional)
Protocol: ISO 7811/7813
Speed: 10cm/sec ~ 150cm/sec
Head Life: 800 thousand times
SmartCard (optional)
Protocol: ISO 7816
Supported Card Type: CPU Card(Bank)
NFC (optional)
Protocol: ISO 14443A
Read Distance: 5cm
Supported Card Type: Mifare S50
Mifare S70, Mifare Ultralight
CPU Card(Bank)
Dimensions
183mm*84mm*68mm
Bluetooth
BT 4.0


Power Supply
AC input voltage
100V~240V AC 50/60Hz
Power adapter output
DC 5V/2A
GSM parameters
SIM card interface
1.8V/2.95V
Dual SIM card
Antenna
Internal,50Ω impedance,3dB gain
Applications

Customize Software for Mobile Payment Solutions

Utility Payment: Electricity, Water, Gas, etc..Money transfer, mobile billing.

Free SDK for Developement of Various Applications

It can be widely used for retail environment, membership management, etc. Free SDK will be provided for development of your applications. And timely technical assistance to make your developement more easier.


1) Restaurant/Online Food Ordering/Coffee Shop/Bagel Stalls: receive order either directly from the a website dispatch
2) Online shop

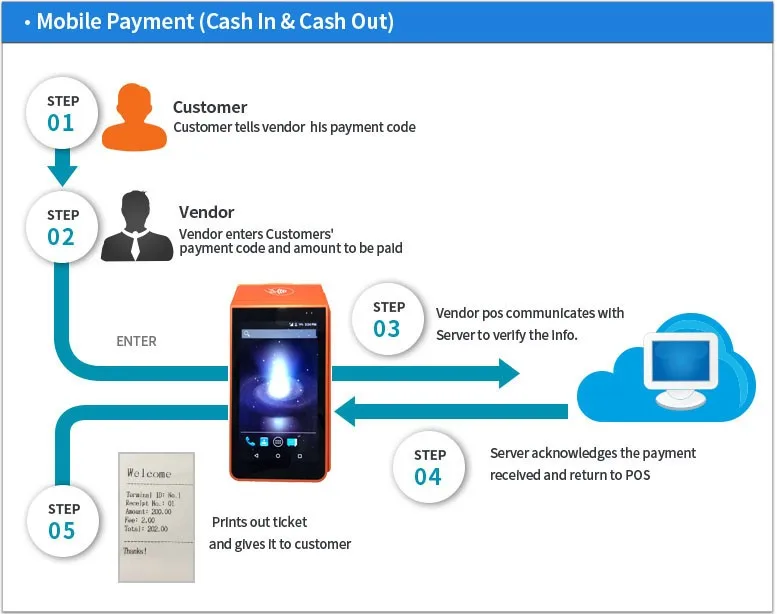

3) Banking Transactions(Mobile Payment, Mobile ATM, etc.)
4) Hotel
5) Flower Shop
6) Football Lottery/Betting
7) Airtime Top-up:
8) Taxi Cab Receipts/Delivery Drivers
9) Stock Inventory/ Asset Tracking
10) Bill Payment(Electricity/Water/Gas,Internet/Broadband,Insurance,Charity,etc.)
11) Ticket Printing (Bus ticket,Carpark Tickets,Airline ticket,Movie Tiket,etc.)
12) Medical Test Results printing
13) Taxis/cab firms/delivery drivers to receive instructions on new pickups/deliveries
14) Any other situation where messages need to be conveyed to a remote party
Our Company
FAQ


Q 1: What are your printer/pos mainly used for?
A: restaurant online food takeaway / delivery, mobile topup, airtime recharge, mobile payment (cash in & cash out), utility bill payment (e.g. water, electricity, gas, etc.), lottery, parking tickets, bus ticketing, etc.



Q 2: What connectivities / interfaces can your printer/pos support?
A: The printers are mainly working via Wifi, LAN, 3G, GPRS, SMS, USSD, STK, Bluetooth, USB, etc.



Q 3: Should a SIM card required for the printer/pos?
A: It depends on the certain Model No(s). For the printer/pos that support Wifi or LAN, they can work without SIM card. For 4G/3G/GPRS/SMS Printers, the SIM card is required.



Q 4: What languages are supported by the printer/pos?
A: Goodcom printer/pos supports multiple language, e.g. English, Spanish, Arabic, Persian, Italian, Portuguese, French, Danish, Polish, Swedish, Vietnamese, German, Chinese, etc. (Customizable)



Q 5: Can the format of layout(printout, receipt, ticket) be customized?
A: Yes. Goodcom provides the tool for format DIY.



Q 6: Can the software or configurations be upgraded remotely to the printer/pos?
A: Yes.



Q 7: What is the warranty of the printer?
A: 1 year



Q 8: What are the after-sales services provided by Goodcom?
A: We offer timely online assistance, technical help, and life-long repairing services for the product.



Q 9: What is the SMS Printer?
A: The SMS Printer is a small, portable, standalone device for receiving and printing messages sent to it. The unit works with most network providers and can be applied for many different regions.



Q 10: How does the SMS Printer work?
A:The SMS message will be received and printed exactly as sent from the sender's phone number. And custom message formatting can be implemented. The SMS printer allows you to send custom messages directly to the printer, and with preset format, the SMS Printer will read and print the message exactly as what you want.



Q 11: How does the WIFI/4G/3G/GPRS/WLAN Printer/Pos Work?
A: The printer/pos will communicate with web server through WIFI/4G/3G/GPRS/WLAN data transfer. The communication should be done based on http get protocol.



Q 12: What's the advantage of using WIFI/4G/3G/GPRS/WLAN instead of SMS?
A: It has the advantage of using a WIFI/4G/3G/GPRS/WLAN connection to send the data to the printer/pos. This results in a lower cost for each transaction to be sent to the printer/pos.



Q 13: Why using a WIFI/4G/3G/GPRS/WLAN/SMS Printer/Pos for Restaurant Online Food Ordering?
A: It's a system that enables restaurants to get their orders directly from online ordering website/app. Through this online food order printer, restaurant could be able to check the order content, accept or reject the order, select or input delivery time, etc..
